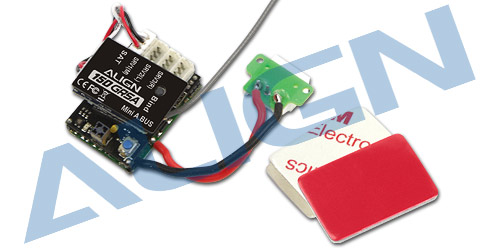

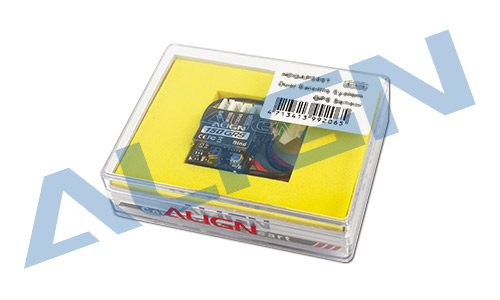

150GRSA Flybarless System Set (A.BUS)

150GRSA Flybarless System Set (A.BUS)
150GRSA Flybarless System Set (A.BUS) | Bild 2
Request for this article »

Description


Technische Daten:
- Operating voltage range:5V-8.4V
- Operating current consumption: <100mA @ 5V
- Rotational detection rate: 2000°/sec
- Rudder yaw detection rate: 2000°/sec
- Sensor resolution:16BIT
- Operating temperature:-20? ~ 65?
- Operating humidity:0% ~ 95%
- Swashplate Support : MODE H-1
- Receiver Support : ALIGN A.BUS / DSM2 / DSMX / DMSS
- Transmit Distance: In open space without interference <150M

Technische Daten 150X Brushless ESC:
- Main motor output current: Continuous 6A / Surge 7A
- Tail motor output current: Continuous 3A / Surge 3.5A
- BEC output current: Continuous 5V/2A / Surge 5V/2.5A
- Persistent maximum current require optimal heat dissipation condition.
- Supported motor types: 2 poles to 18 poles brushless outrunners.
- Maximum rotational speed: 2 poles-240000 RPM, 12 poles-40000 RPM.
- Input voltage: 2S Li-Po.
